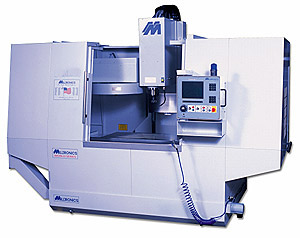

NEW MILLTRONICS VMG-22

Long Travel 30"

Cross Travel 22"

Head Travel 24"

Throat Distancel 16"

Speeds (Var.) 100-8000

Spindle Taper 40

Voltage 220/3/60 V

Motor 15 hp

Weight 16000lbs

FEATURES AND EQUIPMENT INCLUDED:

PC Based CPU

Air/Oil Pressurized Auto Lube For Ball Screws

     And Linear Rails

Precision Ground Table Surface

5 Axes Simultaneous Interpolation Software &

   Interface (Servos Extra)

Oversized Removable Side Doors For Cleaning "&

   Long Pieces

Soft Start High Speed Saddle Metal Way Covers

12" LCD Active Matrix Colour Display

Spindle Taper BlowOut

Automatic Metered Lubrication System

Engraving,Helical Interpolation, Auto Routines, and

   Userdefinable Macros wiht Trig Assist

Cooridnate Rotating, Scaling Mirror Image, Thread Mill &

   Non-Descript Pcoket Clear Cycles

Feed-Forward & Advanced Look-Ahead For High Speed Machining

LCD Hour Meter

End of Cycle Light

Zip Drive

Swivel Operator's Station

Software Package "A" included in Price

Newtworking with 30 Days Phone Support

Auto Import of DXF Files Conversion Software

Full Sheet Metal Enclosure With Lights

Tool Release Button

Swivel Operators Station

Six Nozzle High Volume Coolant Systems

Conversational plus G & M Code Programming with 3-D

Heavy Duty 35mm Liner Way Construction

Operators Station Electronic Handwheel Plus Handwheel

     Controlled Program Execution

Chip Drawer

Manuals

220/3/60 Electrics

INCLUDES ON SITE START UP AND TRAINING FROM FACTORY TECHNICIAN

PRICE:    FOB VANCOUVER, BC $ 74,900.00



SELECT A SPINDLE:

CHOOSE CT or BT c/w 22 HP Closed Loop Spindle Amp

1. Heavy Duty 60mm 8000 rpm Spindle/Cartridge Assembly

    With Air Purge Triplex Bearing (Requires balanced tooling)

$16,800.00

2. Heavy Duty 60mm 12,000 rpm Spindle/Cartridge Assembly

    With Air Purge Triplex Bearing (Requires balanced tooling)

$21,000.00

3. Heavy Duty 60mm 15,000 rpm Spindle/Cartridge Assembly

    With Air Purge Triplex Bearing (Requires balanced tooling)

$23,100.00

4. Gilman 30,000 rpm Spindle with SK30 Keyless Tooling:

   Rated at 19hp from 16,500 to 24,000 rpm and 71 in/lbs
    Torque from 0 to 16,500 rpm. Air/Oil Lubrication.
    (Special Tooling Required)

$43,400.00

ATC OPTIONS:



1. 20 Pocket Carousel ATC - CT40, BT40, SK30 with Elec Orient

$ 8,260.00

2. 16 Pocket Double Arm Type ATC

$ 9,660.00

NOTE: ACCESSORIES CAN BE PURCHASED SEPARATELY

ADDITIONAL ACCESSORIES:

1. Air Blast Hose

$     420.00

2. Programmable Air Blast Nozzle

$   420.00

3. Rigid Tap (#40 Spindles Only)

$  1,400.00

4. Off-Line FastCAM Software for Programming & Training

$     560.00

5. Chip Wash Down System

$  1,400.00

6. Upgrade form Closed Loop Vector 22 hp to 2 Speed 22 hp
    WYE/delta Spindle Drive

$  2,800.00

7. Off-Line FastCAM Software for Programming & Training

$     560.00

8. Dust Collect Guard & Hose

$    560.00

9. Torit Vacuum System

$12,460.00

10.Flood Coolant System with Flood Pan & Chip Drawers

$ 2,380.00

11.Conversion Coolant Loop with Electronic Spindle Chiller

$  2,660.00

12.Auger system

$ 3,220.00

13.Conveyor System

$  5,180.00

14.Remote Handheld Electronic Handwheel

$  1,680.00

15.4th Axis Servo Amplifier

$ 5,460.00

16.6" Rotary Table c/w 4th Axis Amp & Motor    $11,060.00

17. 9" Rotary Table c/w 4th Axis Amp & Motor    $13,860.00

18. Tailstock For Rotary Table    $ 1,260.00

19. Extended Parts Warranty From One to Two Years    $ 2,800.00

Complete Accessories List Upon Request

DELIVERY:                                                       1 -2 Weeks

SALES TAXES : Extra As Applicable.

                 ** PRICES IN CANADIAN DOLLARS **
