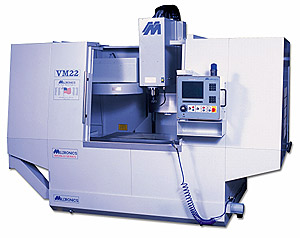

NEW MILLTRONICS
VM-22
VERTICAL
MACHINING CENTER
| Cross Travel |
22" |
| Head Travel |
24" |
| Throat Distance |
23" |
| Speeds (Var.) |
100-8000 |
| Spindle Taper |
40 |
FEATURES
AND EQUIPMENT INCLUDED:
PC
Based CPU
Precision
Ground Table & Critical Mating Surfaces
Faxes
Simultaneous Interpolation Software &
Interface (Servos Extra)
Oversized
Removable
Side Doors For Cleaning "&
Long Pieces
Soft
Start High Speed Saddle Metal Way Covers
10"
LCD Active Matrix Colour Display
20
Pocket Carousel ATC With Electronic Orient
Spindle
Taper BlowOut
Automatic
Metered Lubrication System
Full
Sheet Metal Enclosure With Lights
Tool
Release Button
Swivel
Operators Station
Six
Nozzle High Volume Coolant Systems
Conversational
plus G & M Code Programming with 3-D
Heavy
Duty 35mm Liner Way Construction
(45mm rails on Z Axis)
Operators
Station Electronic Handwheel Plus Handwheel
Controlled Program Execution
Chip
Draw
Manuals
220/3/60
Electrics (Single Phase Available)
INCLUDES
ON SITE START UP AND TRAINING FROM FACTORY TECHNICIAN
| PRICE: FOB VANCOUVER, BC |
|
$ 91,500.00 |
| |
|
|
SOFTWARE
PACKAGE A:
|
1.
Spindle Load Meter
|
|
$
560.00
|
|
2.
Engraving, Auto Routines, User Definable Macros &
Intersection Trig Assist, Helical Interpolation, 3D Mill Cycle |
|
$ 1,260.00
|
|
3.
Coordinate Rotating, Scaling, Mirror Image
|
|
$
1,120.00
|
|
4.
8Mb Extended Program Execution Memory with Large
Program Management Software
|
|
$ 1,400.00 |
| 5. 1.44 Mb Floppy Drive |
|
$ 700.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 5,040.00 |
| PACKAGE PRICE: |
|
$ 2,800.00 |
CONVENIENCE
PACKAGE B:
|
1.
Additional 10Mb Parts Storage Memory (12 Mb Total) |
|
$ 1,120.00
|
|
2.
Chip Auger System |
|
$ 3,220.00
|
|
3.
Air Blast Hose |
|
$
420.00
|
|
4.
Rigid Tap
|
|
$
1,400.00
|
|
5.
Wash Down Hose
|
|
$
420.00
|
| 6. End of Cycle Light |
|
$ 420.00 |
| 7. Single Spare "M" Function
and CNC "Wait" Channel |
|
$ 420.00 |
|
8.
LCD Hour Meter
|
|
$ 420.00 |
|
8.
Non-Descript Pocket Clearing With Islands
|
|
$
700.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 8,540.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
PERFORMANCE
PACKAGE C:
|
1.
Upgrade from Single speed Vector to Two Speed WYE/Delta
Spindle Drive System |
|
$ 4,200.00
|
|
2.
Operator Station Upgrade c/w Discrete
Keys & 12" LCD Screen |
|
$ 1,260.00
|
|
3.
Auto Import of DXF Files Conversion Software |
|
$
700.00
|
|
4.
Networking Option c/w 30 Days Phone Support
|
|
$
1,260.00
|
|
5.Console
Integrated Operator's Station PC Keyboard Tray
|
|
$
280.00
|
| 6. Off-Line FastCAM Software For
Programming & Training |
|
$ 560.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 8,260.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
HIGH
SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State,
Non-Volatile, Memory Upgrade to 256Mb |
$1,680.00 |
|
2.
Zip Drive
|
$
980.00 |
|
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
|
5.
Feed Forward & Look -A For High Speed or 3D Milling
|
$1,680.00 |
| 6. "S" Curve
Accel/Decel Ramp Modifier |
$1,260.00 |
|
SUB-TOTAL
IF PURCHASED SEPARATELY
|
$7,000.00 |
| PACKAGE PRICE: |
$5,600.00 |
ACCESSORIES
FOR GRAPHITE OR ABRASIVE MATERIALS:
| 1. Pressurized Air/Oil Purge
System for Liner Rails & Ball Screws |
$2,800.00 |
|
2.
Troit Vacuum System DFT2-2-MILL
|
$12460.00 |
|
3.
Dust Collector Guard & Hose
|
$
560.00 |
|
4.
Spindle Speeds Higher Than 15,000 rpm
|
T.B.A. |
NOTE:
ACCESSORIES CAN BE PURCHASED SEPARATELY
ADDITIONAL
ACCESSORIES:
|
1.
Upgrade to 12,000 Ceramic Bearing Spindle |
|
$ 4,200.00
|
|
2.
Upgrade to 15,000 Ceramic Bearing Spindle |
|
$ 6,300.00
|
|
3.
Upgrade From 20" Z Axis Travel to 26" |
|
$ 1,680.00
|
|
4.
Upgrade From Chip Auger System to Chip Conveyor |
|
$ 2,240.00
|
|
5.
Chip Wash Down System |
|
$ 1,400.00
|
|
6.
Remote Handheld Electronic Handwheel |
|
$ 1,680.00
|
|
7.
4th Axis Servo Amplifier
|
|
$
5,460.00
|
| 8. 6" Rotary Table c/w 4th Axis Amp
& Motor |
|
$11,060.00 |
| 9. 9" Rotary Table c/w 4th Axis Amp
& Motor |
|
$13,860.00 |
| 10. Tailstock For Rotary Table |
|
$ 1,260.00 |
|
11.
Upgrade to Two Speed 22 hp WYE/Delta Closed Loop Vector |
|
$
4,200.00
|
| 12. Upgrade From 20 Pocket Carousel to
16 Pocket Dbl Arm |
|
$ 4,060.00 |
| 13. Extended Parts Warranty From One to
Two Years |
|
$ 4,200.00 |
Complete
Accessories List Upon Request
| SALES TAXES : |
Extra As Applicable. |
**
PRICES IN CANADIAN DOLLARS **
