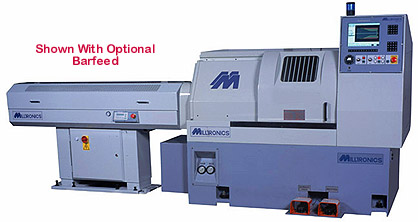

NEW  MILLTRONICS

SL 20/10  CNC

TURNING CENTER

Swing over Bed 16.9"
Z Axis Travel 20.5"
Swing over Crosslide 9"
Spindle Bore  3"
Spindle Mount A2-6
Speeds(Infin Var)) 50-4000
Motor 15 hp
Weight (Approx)   7,500lbs











FEATURES AND EQUIPMENT INCLUDED:



Centurion T PC Based Control

Heavy Duty Linear Rail Construction

PC Based CPU with 2Mb Parts Storage Memory

12 Position Turret

10" Kitagawa Hydraulic Chuck With Footswitch

Hydraulic Tailstock
Tailstock Foot Switch

10" Active Matrix  Colour LCD Screen with Tool Path,  Part Graphics & Tactile Keys

Double Door Full Enclosure

Constant Surface With Threading Cycles

Precision Ground Ball Screws

Chip Drawer

Chuck Guard & Door Interlock Safety Switch

Automatic Home Sequence

Rigid Tap Cycle

Ball Screw Error Compensation

Flood Pump & Nozzle

Hour Meter & Work Lamp

Conversational Plus G & M Code Programming With Toolpath Graphics

Turning, Facing,Grooving,Tapping & Boring Cycles & User Definable Marcos With Trig Help

Pattern Repeat, Chamfering, Radius Programming Assist With Handwheel Tech Mode

Automatic Metered Lubrication with Low Lube Fault

Manuals

220/3/60 Electrics

INCLUDES ON SITE  START UP AND TRAINING FROM FACTORY TECHNICIAN


PRICE: FOB VANCOUVER, BC. $ 89,900.00




SOFTWARE PACKAGE A:
1.Spindle Load Meter $   560.00

2. 8 Mb Program Execution Memory Incl

        Large Program Management   Software

 $1,400.00
3. 1.44Mb Floppy Disk $   700.00

4. Operator's Station Electronic Handwheel Plus Handwheel

    Controlled Program Execution

 $1,400.00
SUB-TOTAL IF PURCHASED INDIVIDUALLY: $4,060.00
SPECIAL PACKAGE PRICE: $2,800.00



CONVENIENCE PACKAGE B

1. Additional 10Mb Parts Storage (12Mb Total)

 $1,120.00

3. Tooling Set: 1 Turning Block, 2 Boring Blocks &

    Set of Straight & Taper Sleeves

 $1,820.00

4. Tool Presetter - Mechanical

 $1,820.00

5. Chip Conveyor

 $5,600.00
SUB-TOTAL IF PURCHASED INDIVIDUALLY: $10360.00
SPECIAL PACKAGE PRICE: $5,600.00



PERFORMANCE PROGRAM PACKAGE C:

1. Optional Station Upgrade Including Discrete Keys Rather

    Than Tactile Keys, 12" LCD Screen Rather 10" LCD

 $1,260.00

2.Upgrade To Closed Loop Two Speed WYE/delta 22/15hp

   Spindle Drive System

 $5,690.00

3.End of Cycle Light

 $   420.00

4. Single Spare "M" Function and CNC Wait Channel

 $   420.00

5. Network Option Includes 30 Day Phone Support

 $1,260.00
6. Auto Import of DXF Files Conversation Software $   700.00
7. Off-Line Fast CAM Software for Programming & Training $   560.00
SUB-TOTAL IF PURCHASED INDIVIDUALLY: $10220.00
SPECIAL PACKAGE PRICE: $5,600.00



LARGE PROGRAM PACKAGE D:
1. Solid State, Non-Volitile, Memory Upgrade to 256Mb $1,680.00

2. Zip Drive

 $   980.00

3. Additional 16Mb Program Execution Memory

 $1,400.00
4. Feed Forward & Look Ahead For Non-Corner Rounding $1,680.00
5."S" Curve Acce/Decel Ramp Modifier $1,260.00
SUB-TOTAL IF PURCHASED INDIVIDUALLY: $7,000.00
SPECIAL PACKAGE PRICE: $5,600.00



NOTE:     ACCESSORIES IN PACKAGES CAN BE PURCHASED



OTHER ACCESSORIES:



1. Barfeed With Electronic Orient $12,460.00
2. Barfeed Interface Only With Spindle Orient $  2,660.00

3 .Toolsetter - Mechanical

 $  1,820.00

4. VDI Turret Face  (No Tool Holders)

 $  1,680.00

5. Upgrade To 22hp Closed Loop 2 Speed WYE/Delta High Torque

    Vector Spindle Amp

 $  4,200.00
6. Extended Parts Warranty From One to Two Years $  2,520.00



Complete Accessory List Upon Request



DELIVERY:  2 WEEKS

SALES TAXES :



Extra As Applicable.

                 ** PRICES IN CANADIAN DOLLARS **
