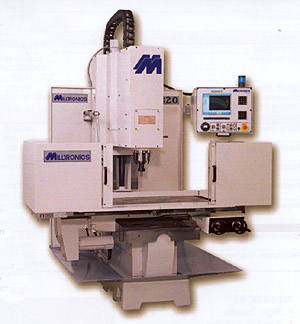

NEW MILLTRONICS
RH-20
RIGID
HEAD
CNC
BED MILL
| Cross Travel |
20" |
| Head Travel |
24" |
| Throat Distance |
21" |
| Speeds (Var.) |
50-6000 |
| Spindle Taper |
40 |
FEATURES
AND EQUIPMENT INCLUDED:
Fully
Hardened & Ground Box Ways With
Turcite Surfaces
Fixed
Head Design-Less Tool Defection
Oversized
Saddles
Fully
Ground Tables
Steel
Way Covers on Y Axis
10"
LCD Active Matrix Colour Display
Spindle
Taper Blow Out
Auto
Lube System
Manuals
220/3/60
Electrics (Single Phase Available)
| PRICE: FOB VANCOUVER, BC |
|
$ 58,500.00 |
| |
|
|
SOFTWARE
PACKAGE A:
|
1.
Spindle Load Meter
|
|
$
560.00
|
|
2.
Additional 10Mb Parts Storage (12Mb Total)
|
|
$ 1,120.00
|
|
3.
Engraving, Auto Routines, User Definable Macros &
Intersection Trig Assist, Helical Interpolation |
|
$ 1,260.00
|
|
4.
Coordinate Rotating, Scaling, Mirror Image
|
|
$
1,120.00
|
|
5.
8Mb Extended Program Execution Memory with Large
Program Management Software
|
|
$ 1,400.00 |
| 6. Single Spare "M"
Function & CNC "Wait" Channel |
|
$ 420.00 |
| 7. 1.44 Mb Floppy Drive |
|
$ 700.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 6,580.00 |
| PACKAGE PRICE: |
|
$ 2,800.00 |
CONVENIENCE
PACKAGE B:
|
1.
Six Nozzle High Volume Flood Coolant
|
|
$
2,100.00
|
| 2. Rear Splash Guards |
|
$ 1,120.00 |
| 3. Coolant Drip Pan |
|
$ 980.00 |
| 4 Rigid Tap |
|
$ 1,400.00 |
| 5. Work Light
|
|
$ 420.00 |
| 6. Remote Handwheel Unit |
|
$ 1,680.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$
7,700.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
PERFORMANCE
PACKAGE C:
| 1. LCD Hour Meter |
|
$
420.00 |
2.
End Of Cycle Light |
|
$
420.00
|
3.
Upgrade to Two Speed 15/10hp WYE/Delta Spindle Drive
|
|
$ 4,200.00
|
| 4. Auto Import of DXF Files Conversion
Software |
|
$
700.00 |
| 5. Off-Line FastCAM Software for
Programming & Training |
|
$
560.00 |
| 6. Networking Option c/w 30 Days Phone
Support |
|
$ 1,260.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 7,560.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
HIGH
SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State,
Non-Volatile, Memory Upgrade to 256Mb |
$1,680.00 |
|
2.
Zip Drive
|
$
980.00 |
|
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
|
4.
"S" Curve Accel/Decel Ramp Modifier
|
$1,260.00 |
| 5. Feed Forward &
Look Ahead For Non-Corner Rounding |
$1,680.00 |
|
SUB-TOTAL
IF PURCHASED SEPARATELY
|
$7,000.00 |
| PACKAGE PRICE: |
$5,600.00 |
NOTE:
ACCESSORIES CAN BE PURCHASED SEPARATELY
ADDITIONAL
ACCESSORIES:
| 1. 16 Carousel Type ATC with
Electronic Orient |
|
$ 5,040.00 |
| 2. 24 Carousel Type ATC with Electronic Orient |
|
$ 8,260.00 |
| 3. 5 Pocket Pick & Place
Tble Mounted Changer c/w Elec Orient |
|
$ 2,660.00 |
| 4. 4th Axis Servo Amplifier |
|
$ 5,320.00 |
| 5. 6" Rotary Table c/w 4th Axis
Amp & Motor |
|
$11,060.00 |
| 6. 9" Rotary Table c/w 4th Axis
Amp & Motor |
|
$13,860.00 |
| 7. Tailstock For Rotary Table |
|
$ 1,260.00 |
| 8. Upgrade to 2 Speed WYE/Delta
15hp Spindle Drive System |
|
$ 2,800.00 |
| 9. Upgrade to 2 Speed WYE/Delta
22hp Spindle Drive System |
|
$ 4,200.00 |
| 10. Upgrade to 12,000 rpm Spindle
(Recommend 2speed 15hp) |
|
$ 4,200.00 |
|
11.
Dual Electronic Handwheels |
|
$
1,540.00
|
| 12. Remote Handwheel (Do Not Combine
With Dual Handwheels) |
|
$ 1,680.00 |
| 13. Table Chip Guard 21" - Removable |
|
$ 1,260.00 |
| 14. Full Enclosure With Chip Auger
(Requires Package B) |
|
$ 8,260.00 |
| 15. Extended Parts Warranty From One to
Two Years |
|
$ 2,800.00 |
| 16. Single Phase WITHOUT ATC |
|
$ 2,240.00 |
| 17. Single Phase WITH ATC |
|
$ 2,940.00 |
Complete
Accessories List Upon Request
| SALES TAXES : |
Extra As Applicable. |
**
PRICES IN CANADIAN DOLLARS **
