| | NEW

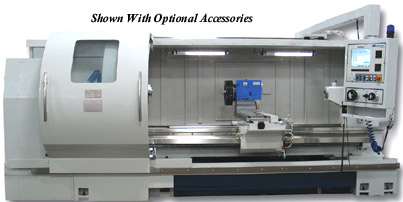

MILLTRONICS
ML35
 35"
x 80"/120"/160" /
200"/240"
CNC/MANUAL
LATHE
WITH
AUTO-SHIFTING
| Swing over Bed |
34.6" |
| Swing In Gap |
52.75" |
|
Z
Axis Travel
With
Tailstock
|
86"/125"
165"
/204" 244" |
|
|
| Speeds(Infin Var)) |
10-630 |
| Weight (Approx) |
20,000lbs |
Automatic
Shifting Spindle With High Torque Gear Box
Centurion
T PC Based Control
Manual
or Full CNC
12" Active
Matrix Colour LCD Screen with Tool Path, Part Graphics & Tactile
Keys
Double
Door Full Enclosure
Automatic
Lubrication
Precision
Ground Ball Screws
Hardened
& Ground Way Surfaces
Chip
Drawer
Tailstock
Chuck
Guard & Door Interlock Safety Switch
Automatic
Home Sequence
Rigid
Tap Cycle
Ball
Screw Error Compensation
Flood
Pump & Nozzle
LCD
Meter
Work
Lamp
End
of Cycle Light
Constant
Surface Speed
Conversational
Plus G & M Code Programming With Toolpath Graphics
Turning,
Facing,Grooving,Tapping & Boring Cycles & User Definable Marcos With
Trig Help
Pattern
Repeat, Chamfering, Radius Programming Assist With Handwheel Tech Mode
Automatic
Metered Lubrication with Low Lube Fault
Spindle
Load Meter
Manuals
220/3/60
Electrics
INCLUDES
ON SITE START UP AND TRAINING FROM FACTORY TECHNICIAN
| PRICE: FOB VANCOUVER, BC. |
X 80" |
$ 155,250.00 |
| |
X 120" |
$ 181,600.00 |
| |
X 160" |
$ 202,500.00 |
| |
X 200" |
$ 228,900.00 |
| |
X 240" |
$ 255,300.00 |
| |
|
SOFTWARE
PACKAGE A:
| 1.Spindle Load Meter |
$
560.00 |
|
2.Constant
Surface Speed With Threading Cycles
|
$1,260.00 |
|
3.Rigid
Tap Cycle
|
$1,680.00 |
|
4.
8 Mb Program Execution Memory Incl
Large Program Management Software |
$1,400.00 |
| 5. 1.44Mb Floppy Disk |
$
700.00 |
| SUB-TOTAL IF PURCHASED
INDIVIDUALLY: |
$5,600.00 |
| SPECIAL PACKAGE PRICE: |
$2,800.00 |
CONVENIENCE
PACKAGE B:
| 1.Dual Electronic Handwheel For
Teach,Manual or Auto Op |
$ 2,800.00 |
|
2.Additional
10Mb Parts Storage (12Mb Total)
|
$ 1,120.00 |
| 3.LCD Hour Meter |
$
420.00 |
| 4. Work Lamp |
$
560.00 |
| 5.End Of Cycle Light |
$
420.00 |
| 6.Single Spare "M"
Function & CNC "Wait" Channel |
$
420.00 |
| 7.Steady Rest - Roller (.75"
- 7.8") |
$ 1.260.00 |
| 8.Follower Rest - Brass Tips
(.4" - 4") |
$ 1.260.00 |
| 9.Tailstock Latch and Auto
Position |
$
700.00 |
| SUB-TOTAL IF PURCHASED
INDIVIDUALLY: |
$8,960.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
PERFORMANCE
PACKAGE C:
| 1.Upgrade to Two Speed WYE/Delta
Spindle Drive |
$4,200.00 |
|
2.Remote
Electronic Handwheel Unit
|
$1,680.00 |
|
3. Networking
Option c/w 30 Days Phone Support
|
$1,260.00 |
|
4.
Auto Import of DXF Files Conversion Software
|
$
700.00 |
| 5. Programming Parameter for
Front & Rear Turret Program |
$
280.00 |
| 6. Off-Line LatheCAM Software for
Programming & Training |
$
560.00 |
| SUB-TOTAL IF PURCHASED
INDIVIDUALLY: |
$8,680.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
HIGH
SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State, Non-Volitile,
Memory Upgrade to 256Mb |
$1,680.00 |
|
2.
Zip Drive
|
$
980.00 |
|
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
|
4.
"S" Curve Accel/Decel ramp Modifier
|
$1,260.00 |
| 5. Feed Forward
& Look Ahead For Non-Corner Rounding |
$1,680.00 |
| SUB-TOTAL IF
PURCHASED INDIVIDUALLY: |
$7,000.00 |
| SPECIAL PACKAGE
PRICE: |
$5,600.00 |
NOTE:
ACCESSORIES IN PACKAGES CAN BE PURCHASED SEPERATELY
|
OTHER
ACCESSORIES:
| 1. Increase Spindle
Bore From 4.17" to 6.02" |
$
9,800.00 |
| 2. Increase Spindle
Bore From 4.17" to 10" |
$43,200.00 |
| 3. Increase Spindle
Bore From 4.17" to 14" |
$69,600.00 |
| 4. Rear Mount Chuck Flange
For 4" Bore |
$
2,100.00 |
| 5. Rear Mount Chuck Flange
For Optional Sp Bore |
$
2,660.00 |
| 6. 16" 3 Jaw
Chuck |
$
6,950.00 |
| 7. 25" 3 Jaw
Chuck |
$
9,650.00 |
| 8. Spindle Orient |
$
1,400.00 |
|
9.
Super Dorian Toolpost & Riser - 1.5"
|
$
3,080.00 |
| 10. Automatic 8 Station
Turret - c/w Riser |
$11,060.00 |
| 11. Automatic 12 Station
Turret - c/w Riser |
$12,460.00 |
| 12. Extended Parts
Warranty One to Two Years |
$
4,900.00 |
Complete
Accessory List Upon Request
| DELIVERY: |
TO BE CONFIRMED |
|
SALES TAXES :
|
Extra As Applicable.
|
**
PRICES IN CANADIAN DOLLARS **
