| | NEW

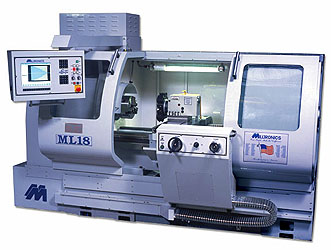

MILLTRONICS
ML
18  18"
x 40"/60"
CNC/MANUAL
LATHE
| Swing over Bed |
18.7" |
| Swing In Gap |
27.9" |
| Swing over
Crosslide |
9.4" |
| Speeds(Infin Var)) |
100-4500 |
FEATURES
AND EQUIPMENT INCLUDED:
Centurion
T PC Based Control
Manual
or Full CNC
10"
Colour LCD Screen with Tool Path, Part Graphics & Tactile Keys
Double
Door Full
Enclosure
Automatic
Lubrication
Precision
Ground Ball Screws
Hardened
& Ground Way Surfaces
Chip
Drawer
Tailstock
Chuck
Guard & Door Interlock Safety Switch
Automatic
Home Sequence
Manuals
220/3/60
Electrics (Single Phase Available)
INCLUDES
ON SITE START UP AND TRAINING FROM FACTORY TECHNICIAN (Lower Mainland
Only)
| PRICE: FOB VANCOUVER, BC. |
|
|
SOFTWARE
PACKAGE A:
| 1.Spindle Load Meter |
$ 560.00 |
2.Constant
Surface Speed With Threading Cycles
|
$1,260.00 |
|
3.Rigid
Tap Cycle
|
$1,680.00 |
|
4.
8 Mb Program Execution Memory Incl
Large Program Management Software |
$1,400.00 |
| 5. 1.44Mb Floppy Disk |
$ 700.00 |
| SUB-TOTAL IF PURCHASED INDIVIDUALLY: |
$5,600.00 |
| SPECIAL PACKAGE PRICE: |
$2,800.00 |
CONVENIENCE
PACKAGE B:
| 1.Dual Electronic Handwheel For
Teach,Manual or Auto Op |
$ 2,800.00 |
2.Additional
10Mb Parts Storage (12Mb Total)
|
$ 1,120.00 |
| 3.LCD Hour Meter |
$ 420.00 |
| 4. Work Lamp |
$ 560.00 |
| 5.End Of Cycle Light |
$ 420.00 |
| 6.Single Spare "M" Function
& CNC "Wait" Channel |
$ 420.00 |
| 7.Steady Rest - Roller (.75" -
7.8") |
$ 1.260.00 |
| 8.Follower Rest - Brass Tips (.4"
- 4") |
$ 1.260.00 |
| 9.Tailstock Latch and Auto Position |
$ 700.00 |
| SUB-TOTAL IF PURCHASED INDIVIDUALLY: |
$8,960.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
PERFORMANCE
PACKAGE C:
| 1.Upgrade to Two Speed WYE/Delta
Spindle Drive |
$4,200.00 |
2.Remote
Electronic Handwheel Unit
|
$1,680.00 |
3. Networking
Option c/w 30 Days Phone Support
|
$1,260.00 |
4.
Auto Import of DXF Files Conversion Software
|
$ 700.00 |
| 5. Programming Parameter for Front
& Rear Turret Program |
$ 280.00 |
| 6. Off-Line LatheCAM Software for
Programming & Training |
$ 560.00 |
| SUB-TOTAL IF PURCHASED INDIVIDUALLY: |
$8,680.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
HIGH
SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State, Non-Volitile,
Memory Upgrade to 256Mb |
$1,680.00 |
2.
Zip Drive
|
$
980.00 |
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
4.
"S" Curve Accel/Decel ramp Modifier
|
$1,260.00 |
| 5. Feed Forward &
Look Ahead For Non-Corner Rounding |
$1,680.00 |
| SUB-TOTAL IF PURCHASED
INDIVIDUALLY: |
$7,000.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
NOTE:
ACCESSORIES IN PACKAGES CAN BE PURCHASED SEPERATELY
OTHER
ACCESSORIES:
| 1. Upgrade to 8" Hydraulic Jaw Chuck |
$6,860.00 |
| 2. Upgrade to 10" Hydraulic Jaw Chuck |
$8,260.00 |
2.
Super Dorian Toolpost & Riser - 3/4"
|
$1,120.00 |
3.
Dorian Quadra Post & Riser Block - 3/4"
|
$1,400.00 |
| 5. Automatic 8 Station
Turret - 3/4" Riser |
$8,260.00 |
| 6. Barfeed With
Spindle Orientation |
$13900.00 |
| 7. Extended Parts
Warranty One to Two Years |
$2,100.00 |
Complete
Accessory List Upon Request
| DELIVERY: |
2 WEEKS |
|
SALES TAXES :
|
Extra As Applicable.
|
**
PRICES IN CANADIAN DOLLARS **
