| | NEW

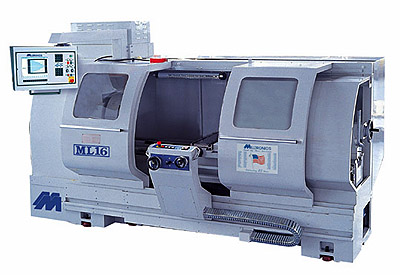

MILLTRONICS
ML
1640  16"
x 47"
CNC/MANUAL
LATHE
| Swing over Bed |
16.7" |
| Swing In Gap |
25.9" |
| Swing over
Crosslide |
7.48" |
| Speeds(Infin Var)) |
40-5000 |
FEATURES
AND EQUIPMENT INCLUDED:
Centurion
T PC Based Control
Manual
or Full CNC
10"
Colour LCD Screen with Tool Path, Part Graphics & Tactile Keys
Double
Door Full
Enclosure
Automatic
Lubrication
Precision
Ground Ball Screws
Hardened
& Ground Way Surfaces
Chip
Drawer
Tailstock
Chuck
Guard & Door Interlock Safety Switch
Automatic
Home Sequence
Manuals
220/3/60
Electrics (Single Phase Available)
| PRICE: FOB VANCOUVER, BC. |
|
$49,900.00 |
SOFTWARE
PACKAGE A:
| 1.Spindle Load Meter |
$ 560.00 |
|
2.Turning, Facing, Grooving, Tapping, Boring Cycles &
User-Definable Macros with Trig Help |
$1,260.00 |
|
3.
Pattern Repeat Chamfering, Radius Programming Assist
With Handwheel Teach Mode |
$ 980.00 |
|
4.
8 Mb Program Execution Memory Incl
Large Program Management Software |
$1,400.00 |
| 5. Programmable Parameter for
Front & Rear Loading |
$ 280.00 |
| 6. 1.44Mb Floppy Disk |
$ 700.00 |
| SUB-TOTAL IF PURCHASED INDIVIDUALLY: |
$5,180.00 |
| SPECIAL PACKAGE PRICE: |
$2,800.00 |
CONVENIENCE
PACKAGE B:
| 1.Additional 10Mb Parts Storage Memory
(12Mb Total) |
$1,120.00 |
| 2.Constant Surface Feed With Threading
Cycles |
$1,260.00 |
3.
Dual Electronic Handwheel For Teach,Manual or Automatic
Operation
|
$2,800.00 |
| 4. Flood Coolant Pump With Nozzle |
$1,260.00 |
| 5. Work Lamp |
$ 560.00 |
| SUB-TOTAL IF PURCHASED INDIVIDUALLY: |
$7,000.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
PERFORMANCE
PACKAGE C:
| 1. Rigid Tap Cycle |
$1,680.00 |
2.
Single Spare "M" Function & CNC Wait Channel
|
$
420.00 |
3.
Upgrade to 12" Colour LCD With Discrete Push Button
|
$1,260.00 |
4.
LCD Hour Meter
|
$
420.00 |
| 5. Auto Import of DXF
Files Conversation Software |
$
700.00 |
| 6. Off Line LatheCAM
Software For Programming & Training |
$
560.00 |
| 7. Steady Rest - Roller
(.8" - 7.8") |
$
980.00 |
| 8. Follower Rest - Roller
(.4" - 3.9") |
$
980.00 |
| SUB-TOTAL IF PURCHASED
INDIVIDUALLY: |
$7,000.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
HIGH SPEED LARGE PROGRAM
PACKAGE D:
| 1. Solid State, Non-Volatile,
Memory Upgrade to 256Mb |
$1,680.00 |
2.
Zip Drive
|
$
980.00 |
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
4.
Network Option Includes 30 Day Phone Support
|
$1,260.00 |
| 5. Feed Forward &
Look Ahead For Non-Corner Rounding |
$1,680.00 |
| SUB-TOTAL IF PURCHASED
INDIVIDUALLY: |
$7,000.00 |
| SPECIAL PACKAGE PRICE: |
$5,600.00 |
NOTE:
ACCESSORIES IN PACKAGES CAN BE PURCHASED
OTHER
ACCESSORIES:
| 1. 8" 3 Jaw Chuck |
$1,260.00 |
2.
Super Dorian Toolpost & Riser - 3/4"
|
$1,120.00 |
3.
Dorian Quadra Post & Riser Block - 3/4"
|
$1,400.00 |
| 5. Automatic 8 Station
Turret - 3/4" Riser |
$9,660.00 |
| 6. Extended Parts
Warranty One to Two Years |
$2,100.00 |
| 7. Single Phase
-WITHOUT Auto Turret - Ask For Details |
$2,240.00 |
| 8. Single Phase
-WITH Auto Turret - Ask For Details |
$2,940.00 |
Complete
Accessory List Upon Request
| DELIVERY: |
2 WEEKS (Approx) |
|
SALES TAXES :
|
Extra As Applicable.
|
**
PRICES IN CANADIAN DOLLARS **
BELL
MACHINERY LTD.
246
EAST 1st AVE.
VANCOUVER,
BC
CANADA
V5T
1A5
PHONE:
(604) 322-6169
FAX: (604) 321-1811
E-MAIL:
bellmac@telus.net
|
