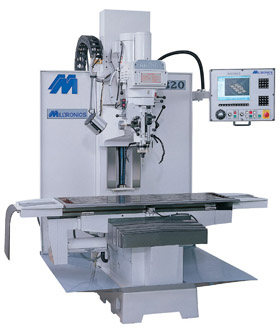

NEW MILLTRONICS MB-20

CNC BED MILL



Table Size 54" x 16"
Long Travel 40"
Cross Travel 20"
Head Travel 24"
Speeds (Var.) 60-4500
Spindle Taper CT40
Manual Quill Travel 6"
Voltage 220/3/60 V
Motor 10 hp
Weight 7000lbs



FEATURES AND EQUIPMENT INCLUDED:



Fully Hardened & Ground Box Ways With Turcite

10" LCD Active Matrix Colour Display c/w

    Tactile Keys

Operates as 3 Axes CNC, Simple 2 Axis or

      Manual Mode

Spindle Fully Programmable to 4500 rpm

Auto Home Sequence With Home Sequences

     With Ball Screw Compensation

Metal Way Covers in Front & Rear Saddle

Auto Lube System

Manuals

220/3/60 Electrics (Single Phase Available)











PRICE:    FOB VANCOUVER, BC $ 53,500.00




SOFTWARE PACKAGE A:



1. Spindle Load Meter

$    560.00

2. Engraving, Auto Routines, User Definable Macros &

    Intersection Trig Assist, Helical Interpolation

$ 1,260.00

3. Coordinate Rotating, Scaling, Mirror Image

$ 1,120.00

4. 8Mb Extended Program Execution Memory with Large

    Program Management Software

   $ 1,400.00
5. 1.44 Mb Floppy Drive    $    700.00
SUB-TOTAL IF PURCHASED SEPARATELY   $ 5,040.00
PACKAGE PRICE:   $ 2,800.00



CONVENIENCE  PACKAGE B:

1, Additional 10Mb Parts Storage Memory (12MbTotal)

$ 1,120.00

2, Front Panel Mounted Electronic Handwheel Plus Handwheel

     Controlled Program Execution

$ 1,400.00

3. Rigid Tap    $ 1,680.00

4 Flood Coolant System With Programmable On/Off

$ 1,260.00

5. Rear Splash Guards    1,120.00
6. Coolant Drip Pan   $    980.00

7. Spindle Spare "M" Function and CNC "Wait" Channel

  $    420.00
8. Worklamp    $    420.00
SUB-TOTAL IF PURCHASED SEPARATELY   $ 8,400.00
PACKAGE PRICE:   $ 5,600.00



PERFORMANCE  PACKAGE C:

1, Quill Scale Position Readout with CNC Feedback to Update

    tool

    lengths Offsets

$ 1,960.00

2, SLS "Skill Level Select" Allows Operator To Choose Simple

    of   Full Featured Programming

$    560.00

3. Operator's Station Upgrade Incl. Discrete Keys rather than

     tactile Keys and 12" LCD Screen Rather Than 10: LCD Screen

   $ 1,260.00

4  Auto Import OF DXF FIles Conversion Software

$    700.00

5. Dual Electronic Handwheels For Manual Op of Saddle & Table    $ 1,680.00
6. LCD Hour Meter   $    420.00

7. Networking Option Inc. 30 Days Support

  1,260.00
8. Off-Line FastCAM Software For Programming & Training    $    560.00
SUB-TOTAL IF PURCHASED SEPARATELY   $ 8,400.00
PACKAGE PRICE:   $ 5,600.00





HIGH SPEED LARGE PROGRAM PACKAGE D:



1. Solid State, Non-Volatile, Memory Upgrade to 256Mb $1,680.00

2. Zip Drive

$   980.00

3. Additional 16Mb Program Execution Memory

$1,400.00

4. "S" Curve Accel/Decel Ramp Modifier

$1,260.00
5. Feed Forward & Look Ahead For Non-Corner Rounding $1,680.00

SUB-TOTAL IF PURCHASED SEPARATELY

$7,000.00
PACKAGE PRICE: $5,600.00



NOTE: ACCESSORIES CAN BE PURCHASED SEPARATELY



ADDITIONAL ACCESSORIES:

1. Change Spindle From 40  to NMTB40, BT40,CT

$     140.00

2. Table Chip Guard 21" High - Removable

$  1,540.00

2. 4th Axis Servo Amplifier

$  5,320.00

3. 6" Rotary Table c/w 4th Axis Amp & Motor    $11,060.00
4. Tailstock For Rotary Table    $  1,260.00

5. Dual Electronic Handwheel

$  1,540.00

6. Extended Parts Warranty:  One to Two Tears    2,520.00
7. Single Phase - May Reduce Power By 20%    $     280.00



Complete Accessories List Upon Request





DELIVERY:                                                       1 -2 Weeks

SALES TAXES :  Extra As Applicable.

                 ** PRICES IN CANADIAN DOLLARS **



BELL MACHINERY LTD.

246 EAST 1st AVE.

VANCOUVER, BC

CANADA

V5T 1A5

PHONE: (604) 322-6169                                       FAX:  (604) 321-1811

E-MAIL: bellmac@telus.net
