NEW EQUIPMENT
USED
EQUIPMENT
NEW TOOLING
& ACCESS
| |

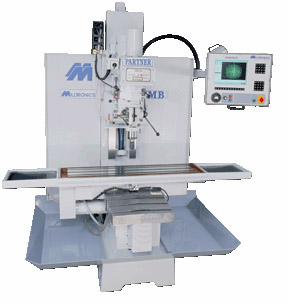

NEW MILLTRONICS
MB-19
CNC
BED MILL
| Cross Travel |
19" |
| Head Travel |
22.5" |
| Speeds (Var.) |
60-4500 |
| Spindle Taper |
CT40 |
FEATURES
AND EQUIPMENT INCLUDED:
Operates
as 3 Axes CNC, Simple 2 Axis or
Manual Mode
Spindle
Fully Programmable to 4500 rpm
Fully
Ground Way Surfaces With Turcite
Auto
Lube System
Manuals
220/3/60
Electrics (Single Phase Available)
| PRICE: FOB VANCOUVER, BC |
|
$ 42,500.00 |
| |
|
|
ACCESSORY
PACKAGE A:
|
1.
Spindle Load Meter
|
|
$
560.00
|
|
2.
Engraving, Auto Routines, User Definable Macros &
Intersection Trig Assist, Helical Interpolation |
|
$ 1,260.00
|
|
3.
Coordinate Rotating, Scaling, Mirror Image
|
|
$
1,120.00
|
|
4.
8Mb Extended Program Execution Memory with Large
Program Management Software
|
|
$ 1,400.00 |
| 5. 1.44 Mb Floppy Drive |
|
$ 700.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 5,040.00 |
| PACKAGE PRICE: |
|
$ 2,800.00 |
ACCESSORY
PACKAGE B:
|
1,
Front Panel Mounted Electronic Handwheel Plus Handwheel
Controlled Program Execution |
|
$ 1,400.00
|
|
2.
Additional 10 Mb Parts Storage Memory
|
|
$
1,120.00
|
|
3.
Power Drawbar System
|
|
$
1,680.00
|
| 4. Flood Coolant System c/w Programmable
On/Off |
|
$
980.00 |
| 5. Coolant Drip Pan |
|
$
980.00 |
| 6. Rear Splash Guards |
|
$ 980.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$
7,560.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
PERFORMANCE
PACKAGE C:
|
1,
Rigid Tap |
|
$ 1,680.00
|
|
2.
Single Spare "M" Function & CNC Wait Channel
|
|
$
420.00
|
|
3.
Dual Electronic Handwheels
|
|
$
1,680.00
|
| 4. Quill Position Readout |
|
$
700.00 |
| 5. Auto Import of DXF Files Conversion
Software |
|
$
700.00 |
| 6. Off-Line FastCAM Software for
Programming & Training |
|
$
560.00 |
| 7. Non-Descript Pocket Clearing |
|
$
700.00 |
| 8. LCD Hour Meter |
|
$
420.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 6,860.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
HIGH
SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State,
Non-Volatile, Memory Upgrade to 256Mb |
$1,680.00 |
|
2.
Zip Drive
|
$
980.00 |
|
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
|
4.
Network Option Includes 30 Day Phone Support
|
$1,260.00 |
| 5. Feed Forward &
Look Ahead For Non-Corner Rounding |
$1,680.00 |
|
SUB-TOTAL
IF PURCHASED SEPARATELY
|
$7,000.00 |
| PACKAGE PRICE: |
$5,600.00 |
NOTE:
ACCESSORIES CAN BE PURCHASED SEPARATELY
ADDITIONAL
ACCESSORIES:
|
1.
Change Spindle From R8 to NMTB30, BT30,CT |
|
$
140.00
|
|
2.
4th Axis Servo Amplifier
|
|
$
5,460.00
|
| 3. 6.5" Rotary Table c/w 4th Axis
Amp & Motor |
|
$12,460.00 |
| 4. Tailstock For Rotary Table |
|
$ 1,260.00 |
|
5.
Upgrade to 12" Colour LCD |
|
$
1,260.00
|
| 6. Remote Cycle Start Button |
|
$
420.00 |
| 7. Table Chip Guard - Removable |
|
$ 1,260.00 |
| 8. Extended Parts Warranty: From One to
Two Years |
|
$ 2,240.00 |
| 8.Single Phase - May Reduce Power By 20% |
|
$
240.00 |
Complete
Accessories List Upon Request
| SALES TAXES : |
Extra As Applicable. |
**
PRICES IN CANADIAN DOLLARS **
BELL
MACHINERY LTD.
246
EAST 1st AVE.
VANCOUVER,
BC
CANADA
V5T
1A5
PHONE:
(604) 322-6169
FAX: (604) 321-1811
E-MAIL:
bellmac@telus.net
|
