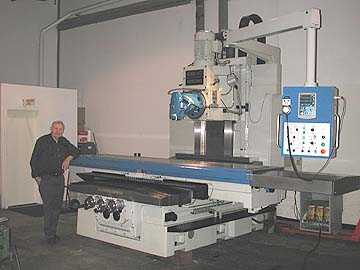

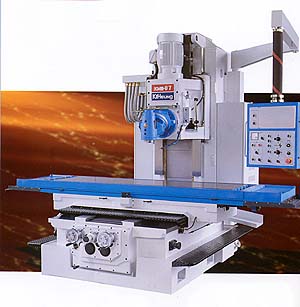

NEW KIHEUNG KMB-U7

BED TYPE UNIVERSAL

MILLING MACHINE



Table Size 106" x 29 "
Table Size 130" x 29 "
Table Size 153" x 29 "
Long Travel 78"/102"/126"
Cross Travel 39"
Vertical Travel 33"
Speeds (18) 18-1300
Spindle Taper 50
Voltage 220/3/60 V
Max. Table Load 8,800 lbs
Motor-Main 15 hp
Weight 33,000lbs



FEATURES AND EQUIPMENT INCLUDED:



Ball Screws X,Y,Z - Metric

Direct Horizontal Drive c/w

 Horizontal Attachment

Hydraulic Clamping

Direct Drive Horizontal Spindle

Auto Lubrication System

Power & Rapids All Directions

Huron Type Head With Power Clamping

Coolant System

Hardened & Ground Slide Ways

Manual











CURRENT PRICE:    FOB BELL MACHINERY LTD.  106" x 37" $214,900.00
                                                                                                 130" x 37"   $245,900.00
                                                                                                 153" x 37"  $275,,900.00
LEASING AVAILABLE



OPTIONAL ACCESSORIES:

Horizontal Attachment   $  8,900.00
 M.PG. Handle (Hand held Feed Movement)  $  3,295.00

Sinoi 3 Axis  Digital Readouts

Installed (Additional Features)

 $ POR

Mitutoyo 3 Axis  Digital Readouts

Installed (Additional Features)

 $  POR

Acu-rite 3 Axis  Digital Readouts

Installed (Additional Features)

 $  POR

Vises, Clamp Kits, Cutters, Collet Sets etc



SALES TAXES :  Extra As Applicable.

                 ** PRICES IN CANADIAN DOLLARS **
